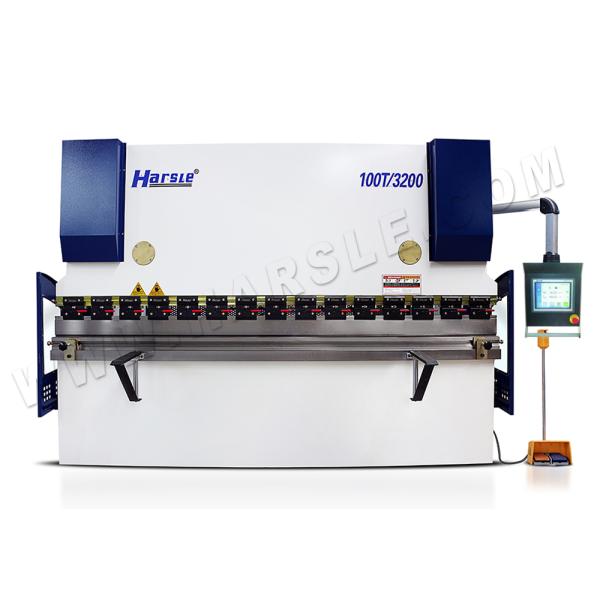

TP10 Servo hydraulic Press Brake
Main Features
1. The whole welded machine structure achieves high rigidity; the machine is designed by ANSYS software which can ensure the reliability and precision of the press brake.
2. The servo motors for backgauge and ram stroke are controlled by servo driver, which can achieve high positioning accuracy of the backguage and can work with high speed.
3. Different punch and dies are optional according to customer’s requirements, such as Multi-V die, radius die, gooseneck die, etc. One set of complete standard punch and die will be included for free.
4. X axis(Backgauge) and Y axis(Ram stroke or cylinder stroke) can be programmed by TP10 system controller, which can store up to 100 groups of programs and 25 bends per program.
5. Side and rear metal safety guard meets European safety standard.
6. Bending angle programming is available for TP10 by inputting material length and thickness, bending punch and dies parameters.
7. Foot switch with emergency button can stop the machine immediately when accident happens.
Technical Parameters
| NC Press Brake model | Nominal pressure (KN) | Length of table (mm) | Distance between housings (mm) | Throat depth (mm) | Stroke of ram (mm) | Strokes of ram (min-1) | Max. open height (mm) | Main. motor (kw) |
| WC67K-30/1300 | 300 | 1300 | 1020 | 200 | 100 | ≥11 | 210 | 3 |
| WC67K-40/2000 | 400 | 2000 | 1650 | 200 | 100 | ≥11 | 300 | 4 |
| WC67K-40/2500 | 400 | 2500 | 2050 | 200 | 100 | ≥11 | 300 | 4 |
| WC67K-63/2000 | 630 | 2000 | 1650 | 250 | 100 | ≥10 | 320 | 5.5 |
| WC67K-63/2500 | 630 | 2500 | 2050 | 250 | 100 | ≥10 | 335 | 5.5 |
| WC67K-63/3200 | 630 | 3200 | 2670 | 250 | 100 | ≥10 | 335 | 5.5 |
| WC67K-63/4000 | 630 | 4000 | 3200 | 250 | 100 | ≥10 | 335 | 5.5 |
| WC67K-80/2500 | 800 | 2500 | 2050 | 250 | 100 | ≥10 | 350 | 7.5 |
| WC67K-80/3200 | 800 | 3200 | 2660 | 250 | 100 | ≥10 | 350 | 7.5 |
| WC67K-100/2500 | 1000 | 2500 | 2050 | 320 | 100 | ≥8 | 365 | 7.5 |
| WC67K-100/3200 | 1000 | 3200 | 2650 | 320 | 100 | ≥8 | 365 | 7.5 |
| WC67K-100/4000 | 1000 | 4000 | 3100 | 320 | 100 | ≥8 | 365 | 7.5 |
| WC67K-125/2500 | 1250 | 2500 | 2050 | 320 | 100 | ≥8 | 415 | 7.5 |
| WC67K-125/3200 | 1250 | 3200 | 2650 | 320 | 150 | ≥8 | 415 | 7.5 |
| WC67K-125/4000 | 1250 | 4000 | 3200 | 320 | 150 | ≥8 | 415 | 7.5 |
STANDARD CONFIGURATION

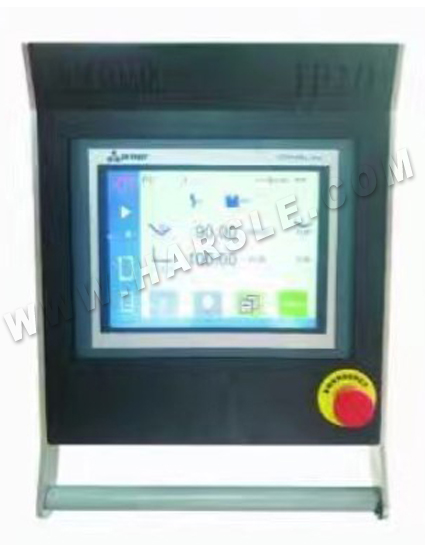

| TP10 features |  |
| ■ Beam stop control |
| ■ Backgauge control |
| ■ Angle programming |
| ■ Tool programming |
| ■ Retract function |
| ■ Up to 100 programs |
| ■ Servo motor control |
| ■ Up to 25 bends per program |
| Schneider Electric Components |  |
| ■ High quality electric parts can perform well even the electricity is not stable and customers can easily get the replacement anywhere in the word. |
 | Servo Motor |
| ■ Backgauge and cylider stroke are controlled by servo motors with high accuracy and fast speed. |
| Safety Fence |  |
| ■ Protective guards on each side can protect the user during operation |
| SIEMENS Motor |  |
| ■ German famous brand motor improves the lifespan of the machine and keeps the machine working in low noise environment. |
 | Hydraulic Valve |
| ■ Rexroth from Germany. |
| EMB Tubing connector |  |
| ■ Good-looking structure and reduce the possibility of oil leakage. |
 | Z Stopper |
| ■ Fine adjustment with high accuracy up to ±0.02mm |
| SUNNY Pump |  |
| ■ American world famous brand for hydraulic pump performs well and provides great power for the whole hydraulic system. |
 | Manual R axis |
| Adjust Backgauge up and down. |
| CNC Backgauge |  |
| ■ X Aixs is controlled by servo motor HIWIN Ball Screw and Linear guide. |
Optional Configuration

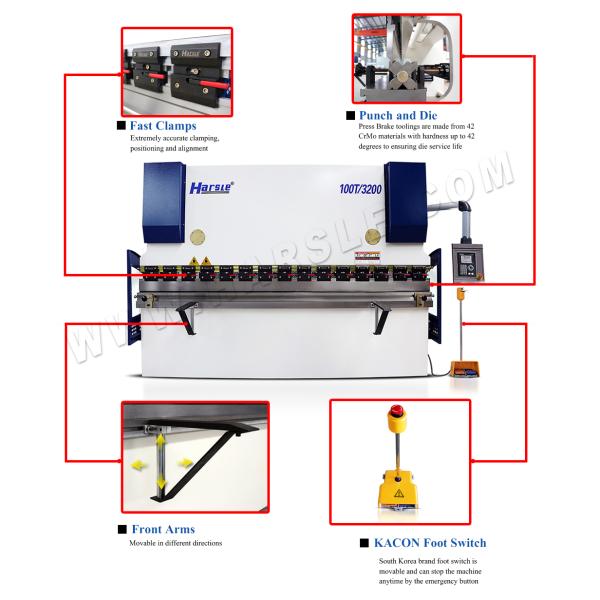

 | NO.1 Goose neck punch |
| NO.2 Hemming Punch and die |  |
 | NO.3 Manual Crowning Worktable Achieve higher bending Accuracy |
| NO.4 Light Curtain |  |
 | NO.5 Laser protector |
| NO.6 Motorized Movable Z Stopper The Z stopper can be controlled by the switch on the multifunctional foot switch |  |
 | NO.7 Multifunctional Foot Switch |
| NO.8 Manual Z Stoppers With Manual Height Adjustment |
|
|
|
